Upgrade Microsoft Domain Controller 2008 R2 to DC 2012 R2 with Exchange 2010 in the current environment.


Upgrade Microsoft Domain Controller 2008 R2 to DC 2012 R2 with Exchange 2010 in the current environment.

Prerequisites:
1- Windows 2012 R2 fully patches
2- New Windows 2012 R2 server should be joined to the Domain controller 2008r2

After you get all the prerequisites ready, start the Server manager and click on Add roles then add the ADDS role and follow the following instructions
Install the role and the n configure it as following
clip_image001

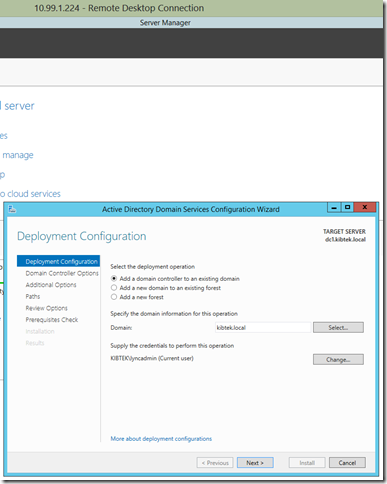

Add it to the existing DC
clip_image002

clip_image003
clip_image004
clip_image005
clip_image006
clip_image007
clip_image008
clip_image009
clip_image010
to migrate the AD Operations Master roles.  The simplest way to move these roles is via PowerShell.  On Server 2012 AD PowerShell modules, this can be done from anywhere.  Simply run the following command to view you current configuration, and change them:
PS C:> netdom query FSMO
clip_image011
Move-ADDirectoryServerOperationMasterRole -identity “dc1” -OperationMasterRole 0,1,2,3,4
clip_image012
clip_image013
Making sure that all the roles have been migrated :
netdom query FSMO
clip_image014
clip_image015
Adding second DC
clip_image016
Reference:
https://technet.microsoft.com/en-us/library/ee617229.aspx?f=255&MSPPError=-2147217396
Source: Default-First-Site-NameDC2
******* 1 CONSECUTIVE FAILURES since 2015-03-23 19:37:45
Last error: 8524 (0x214c):
The DSA operation is unable to proceed because of a DNS lookup failu
re.
Naming Context: CN=Configuration,DC=kibtek,DC=local
Source: Default-First-Site-NameDC2
******* WARNING: KCC could not add this REPLICA LINK due to error.
Naming Context: CN=Schema,CN=Configuration,DC=kibtek,DC=local
Source: Default-First-Site-NameDC2
******* WARNING: KCC could not add this REPLICA LINK due to error.
Naming Context: DC=kibtek,DC=local
Source: Default-First-Site-NameDC2
******* WARNING: KCC could not add this REPLICA LINK due to error.
clip_image017
Resolution:
After joining new DC you will see this error until the replication with the PDC and schema master is finished.
Use the repadmin /syncall to hasten the sync process.
clip_image018
After we changed the PDC and Schema master role server to the new DC and shut down the old DC for test. On Exchange 2010 server you might get the following error
Exchange Console
clip_image019
Current deployment

  1. Exchange 2010
  2. New DC 2012 R2 with another Additional DC installed newly.
  3. Two DC 2008R2 but have been shut down for testing.

Problem:
After you shutdown or demote the old PDC or Schema master Demote Domain Controller role, Microsoft Exchange Management Console fails to retrieve any Exchange information with error message “An error caused a change in the current set of Active Directory Server settings. Restart Exchange Management console.”
Cause
Microsoft Exchange management console caches the data in the user’s profile for quick access, So whenever you try to open EMC from an existing Exchange admin profile you will get the same error.
Resolution:
Navigate to the following folder and delete the Exchange Management Console file.
{308b10a016e19a1cd6a208cbc3961927e16fc6766a4020d3c4ef54ea17925f0f}userprofile{308b10a016e19a1cd6a208cbc3961927e16fc6766a4020d3c4ef54ea17925f0f}appdataroamingMicrosoftMMCExchange Management Console
clip_image020

Hope this was useful Winking smile
