How I configured my own name server (Public DNS) on Pfsense

To configure your own nameserver, first you must have a public domain (domain.com) ..
In this example I will register a free domain from this registrar: www.freenom.com
The process for registration is pretty simple, you will have to follow the wizard and validate your email then sign in to your portal to edit or configure your free domain.

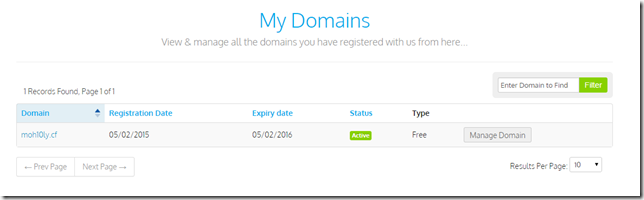

I have already added a new domain for myself which is called ( moh10ly.cf )
clip_image001

To configure name servers, You must fulfill the following prerequisites:

  1. Public static IP.
  2. DNS Package on Pfsense
  3. Firewall that supports static NAT.

Next step: I will click on Manage domain to change the DNS configuration to point it to my own name server
clip_image002
When you get the following window, click on Management tools and choose “Register glue records”
clip_image003
Very important note:
Next add your Name servers (They don’t need to exist as we will create them later) but you will have to create 2 at least and you can point them to the same Public IP address.
clip_image004
Scroll down and you will find an option to add the second dns, you can call it dns2 and point it to the same IP address.
Next save changes, then click on Management tools –> Name Servers and there if you couldn’t find the new name servers you have configured then enter them here.
clip_image005
Save changes again
Now let’s go on Pfsense and setup our Public DNS (Name Server), You will have to go to “System>Packages>Available Packages” and there download “dns-server” or “TinyDns”
clip_image006
When you have finished installing TinyDns you will find it under “Services” menu. Click on it
Once you are there, click on “Settings tab” and on the binding IP address place your Public IP which you’ll use for the name servers. And make sure you use the WAN NIC to listen on.
clip_image007
Save and click on the “New domain wizard” to setup your domain
clip_image008
Click Next
clip_image009
On the next window configure your domain as in the following, make sure that it matches your configuration on registrar’s domain.
clip_image010
Click Next and Finish
Once finished, go to the Add/ Edit record tab and there you will find 4 created records
clip_image011
Next create the root DNS record which is . And point it to the same public IP and any other records that you might have an installed role for like Exchange, IIS ..etc
clip_image012
Now it’s time to configure the firewall to allow inbound queries on port 53. here’s the rule that I have created under (FirewallRules) because I have only one Public IP address on WAN I won’t use a static NAT rule.
clip_image013
I will go back to TinyDns on Pfsense to see the incoming requests for name resolving from public clients.
Under the logs tab I could see the requests I was making from my PC using google as my DNS.. So everything works fine.
clip_image014
That’s it, the configuration of your own Name server is done. Smile
