Adding second copy of a database on Exchange 2013 SP1 CU7 results in the Error Event ID 1010

Adding second copy of a database on Exchange 2013 SP1 CU7 results in the   Error Event ID 1010

After you create a DAG and add mailbox members to it, you try to add a copy of a certain database but you receive the following error:

Error:
Seeding of content index catalog for database DB2 failed. Please verify that the Microsoft Search (Exchange ) and the Host Controller service for Exchange services are running and try the operation again. Error :Could not connect to net.tcp://localhost3863/Management/Seedingagent-XXXXX/Single. The connection attempt lasted for a time span of xx:xx:xx. Tcp error code 10061: No connection could be made because the target machine actively refused it 127.0.0.1:3863

clip_image001

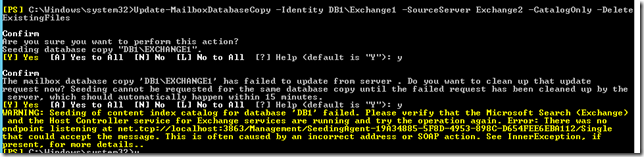

Update-mailboxdatabasecopy -identity EKMBX2Personel -sourceserver ekmbx1 -catalogonly
clip_image002
clip_image003

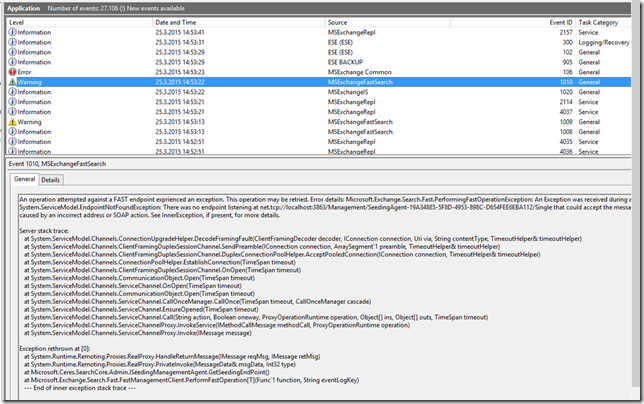

An operation attempted against a FAST endpoint exprienced an exception. This operation may be retried. Error details: Microsoft.Exchange.Search.Fast.PerformingFastOperationException: An Exception was received during a FAST operation. —> System.ServiceModel.EndpointNotFoundException: There was no endpoint listening at net.tcp://localhost:3863/Management/SeedingAgent-19A34885-5F8D-4953-898C-D654FEE6EBA112/Single that could accept the message. This is often caused by an incorrect address or SOAP action. See InnerException, if present, for more details.
Server stack trace:
at System.ServiceModel.Channels.ConnectionUpgradeHelper.DecodeFramingFault(ClientFramingDecoder decoder, IConnection connection, Uri via, String contentType, TimeoutHelper& timeoutHelper)
at System.ServiceModel.Channels.ClientFramingDuplexSessionChannel.SendPreamble(IConnection connection, ArraySegment`1 preamble, TimeoutHelper& timeoutHelper)
at System.ServiceModel.Channels.ClientFramingDuplexSessionChannel.DuplexConnectionPoolHelper.AcceptPooledConnection(IConnection connection, TimeoutHelper& timeoutHelper)
at System.ServiceModel.Channels.ConnectionPoolHelper.EstablishConnection(TimeSpan timeout)
at System.ServiceModel.Channels.ClientFramingDuplexSessionChannel.OnOpen(TimeSpan timeout)
at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.OnOpen(TimeSpan timeout)
at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.CallOnceManager.CallOnce(TimeSpan timeout, CallOnceManager cascade)
at System.ServiceModel.Channels.ServiceChannel.EnsureOpened(TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.Call(String action, Boolean oneway, ProxyOperationRuntime operation, Object[] ins, Object[] outs, TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannelProxy.InvokeService(IMethodCallMessage methodCall, ProxyOperationRuntime operation)
at System.ServiceModel.Channels.ServiceChannelProxy.Invoke(IMessage message)
Exception rethrown at [0]:
at System.Runtime.Remoting.Proxies.RealProxy.HandleReturnMessage(IMessage reqMsg, IMessage retMsg)
at System.Runtime.Remoting.Proxies.RealProxy.PrivateInvoke(MessageData& msgData, Int32 type)
at Microsoft.Ceres.SearchCore.Admin.ISeedingManagementAgent.GetSeedingEndPoint()
at Microsoft.Exchange.Search.Fast.FastManagementClient.PerformFastOperation[T](Func`1 function, String eventLogKey)
— End of inner exception stack trace —
Cause:
Node not listening on the required port.

Resolution:
Stop the following Services

– Microsoft Exchange Search
– Microsoft Exchange Search Host Controller

clip_image004

Navigate to the following path:

ExchangeFolderBinSerachCeresInstaller

and run the following script to reinstall the search foundation for Exchange

Command
.installconfig.ps1 -action u -dataFolder ‘ExchangePATHBinSearchCeresHostControllerData’

Example:
.installconfig.ps1 -action u -dataFolder ‘E:MicrosoftExchangeServer2013BinSearchCeresHostControllerData’

clip_image005

The first step will uninstall the services:

[PS] E:MicrosoftExchangeServer2013BinSearchCeresInstaller>.installconfig.ps1 -action u -dataFolder ‘E:MicrosoftExchangeServer2013BinSearchCeresHostControllerData’

Uninstalling configuration of Search Foundation for Exchange…
Uninstallation complete

The second step will be reinstalling the service foundation again. the only difference in the cmdlet is the parameter -i

.installconfig.ps1 -action i -dataFolder ‘E:MicrosoftExchangeServer2013BinSearchCeresHostControllerData’

Configuring Search Foundation for Exchange….
Successfully configured Search Foundation for Exchange

After doing this you should delete the copy database’s index folder, and then start the services again.

Note:
After restarting the services, it could take 10-15 minutes for the database indexing to start and for it to report healthy.

 clip_image004
